Product Details
강조하다:
입히는 섬유유리 직물
,방화 효력이 있는 피복
Weight:
220g/sqm
Width:
1000 밀리미터 1520 밀리미터 1550m 2000 밀리미터
Thickness:
0.21mm
Color:
빨간색
Weave:
솔직한
Coating Temperature Resistance:
180℃
Basic Fabric Temperature Resistance:
550C
Coated:
PU 양쪽
Fiberglass:
E-유리
Product Description

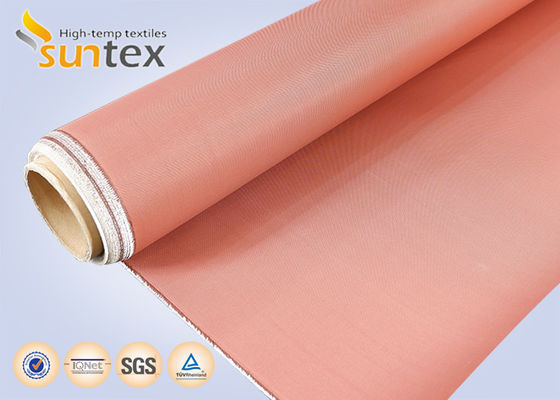

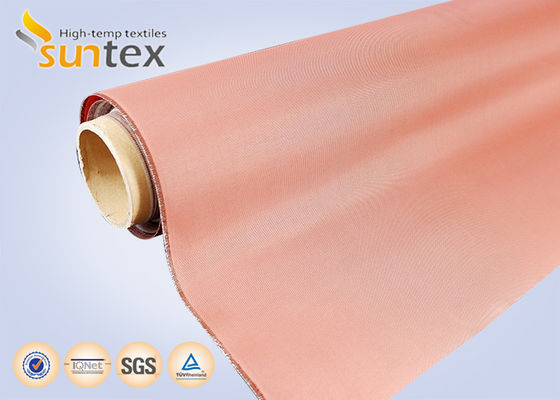

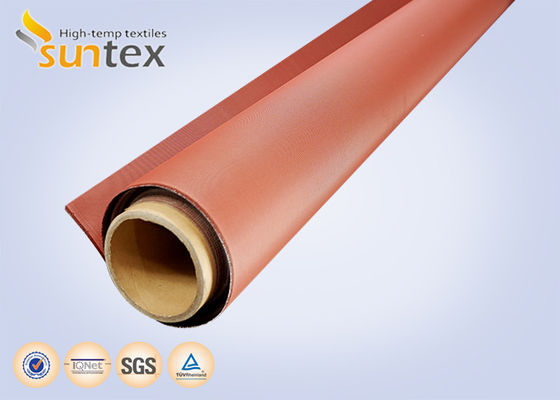

고열 피복 PU는 섬유유리 직물 방화 장벽 0.21mm 빨간 방화 효력이 있는 직물 220g를 입혔습니다
소개하다
GF200P-PU214-2003은 특별히 제조된 폴리우레탄 폴리머를 사용한 경량 유리섬유 직물입니다. 이는 연기 및 방화 커튼, 블라인드, 중공 벽 방화 장벽 및 기타 유형의 연기 및 화재 제어 시스템 제조업체를 위한 것입니다.
이점
1. 내화성이 우수하다는 인증을 받았습니다.
2. 다양한 색상을 사용할 수 있습니다.
3. 사용, 봉제 및 제작이 쉽습니다.
4. 내마모성이 우수합니다.
5. 인장강도가 좋다.
6. 두께, 무게, 직조 등 모두 귀하의 응용 분야에 따라 맞춤화될 수 있습니다.
데이터
| 무게 | 220g/㎡2 |
| 두께 | 0.21mm |
| 너비 | 1000mm 1520mm 1550mm 2000mm |
| 코팅 | PU |
| 색상 | 빨간색 |
| 내화성 | 좋은 |
| 코팅 온도 저항 | PU코팅 180℃ |
| 기본 직물 작동 온도 | 기본원단 550℃ |
| 짜다 | 솔직한 |
| 실 날실 | EC9 68 1*0 |
| 원사 위사 | EC9 68 1*0 |
| 건설 워프 | 18엔드/cm |
| 건설 위사 | 12.6끝/cm |
| 유리섬유 | E-유리 |
응용
연기 커튼
소방 담요
신축이음
단열 패드
공기 덕트
관련 제품
| 스타일 번호 | 무게 | 두께 | 색상 | 코팅 | ||
| g/m2 | 온스/야드2 | mm | 인치 | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | 하얀색 | 2면 |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | 실버 그레이 | 2면 |
| GF430P-PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | 실버 그레이 | 2면 |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | 블루/블랙 | 2면 |
| GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | 회색 흰색 | 2면 |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | 블루/블랙 | 2면 |
| GF660-PU223-2016 | 720 | 21 | 0.71 | 0.0275 | 실버 그레이 | 2면 |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | 실버 그레이 | 1면 |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | 실버 그레이 | 2면 |
| TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | 녹색 | 1면 |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | 실버 그레이 | 2면 |
| GF660S-PU113-2040 | 790 | 23 | 0.70 | 0.027 | 회색 | 1면 |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | 실버 그레이 | 1면 |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | 실버 그레이 | 2면 |
