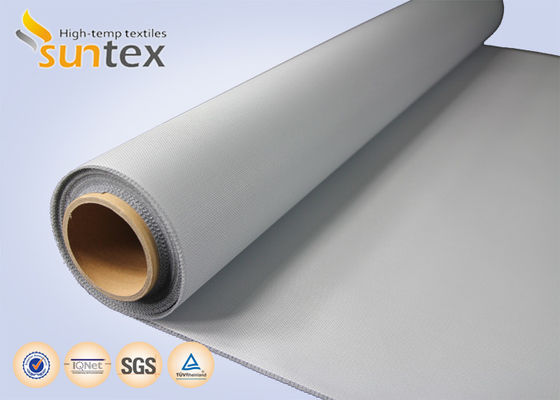

M0 인증 4H 사틴 0.41mm 이중 PU 코팅 불 retardant 커튼 천

Place of Origin:중국
Brand Name:SUNTEX
Model Number:GF430P-PU213-2005
Minimum Order Quantity:20의 목록
Payment Terms:t/t; L/C, PayPal ...
Supply Ability:500000SQM/month
Product Details
강조하다:

내화성이 있는 섬유유리 피복

,

방화 효력이 있는 피복

Weight: 460g/sqm
Width: 1000 밀리미터 1520 밀리미터 1550m 2000m
Thickness: 0.41 밀리미터
Color: 실버 그레이
Weave: 4H 진
Temperature Resistance /Working Temperature: 550℃ 1000°F
Coated: PU 2 옆
Fiberglass: E-유리
Product Description

고열 PU 입히는 섬유유리 직물 0.41mm 방화 효력이 있는 직물 M0 내화성 커튼



소개하다



GF430P-PU213-2005는 특별히 제조된 폴리우레탄 폴리머로 코팅된 중간 무게의 E-유리 직물입니다. 방화문, 연기커튼에 적용되는 원단입니다.



이점



1. M0 인증 내화성.

2. 다양한 색상을 사용할 수 있습니다.

3. 사용, 봉제 및 제작이 쉽습니다.

4. 내마모성이 우수합니다.

5. 인장강도가 좋다.

6. 두께, 무게, 직조 등은 용도/사용 방법에 따라 맞춤 제작이 가능합니다.



M0 인증 4H 사틴 0.41mm 이중 PU 코팅 불 retardant 커튼 천



데이터



무게 460g/㎡2
두께 0.41mm
너비 1000mm 1520mm 1550mm 2000mm
코팅 PU
코팅 색상 실버 그레이
내화성 M0
작동 온도 기본원단 550℃, PU코팅 180℃.
짜다 공단
실 날실 EC9 68 1*2
원사 위사 EC9 68 1*2
건설 워프 18±1 끝/cm 끝/인치
건설 위사 12.6±1 끝/cm 끝/인치
유리섬유 E-유리


응용

연기 커튼

소방 담요

신축이음

재사용 가능한 단열 커버

단열 패드

공기 덕트



관련 제품



스타일 번호 무게 두께 색상 코팅
g/m2 온스/야드2 mm 인치
GF200P-PU210-2001 220 6.5 0.21 0.0082 하얀색 2면
GF430P-PU213-2004 460 13.5 0.41 0.0161 실버 그레이 2면
GF430P-PU213-2005 460 13.5 0.40 0.015 실버 그레이 2면
GF430P-PU21A-2006 460 13.5 0.41 0.0161 블루/블랙 2면
GF430P—PU21B-2007 460 13.5 0.40 0.015 회색 흰색 2면
GF430P-PU223-2010 490 14.5 0.45 0.0177 블루/블랙 2면
GF660-PU223-2016 720 21 0.71 0.0275 실버 그레이 2면
TGF580-PU113-2019 620 18.3 0.77 0.0303 실버 그레이 1면
GF800C-PU223-2023 880 26 0.9 0.0354 실버 그레이 2면
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 녹색 1면
GF660S-PU213-2036 710 20.9 0.7 0.0276 실버 그레이 2면
GF660S-PU113-2040 790 23 0.70 0.027 회색 1면
SL600-PU113-2044 630 18.6 0.7 0.0276 실버 그레이 1면
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 실버 그레이 2면
