제품 세부정보
강조하다:
입히는 섬유유리 직물
,방화 효력이 있는 피복
Weight:
690g/제곱미터
Width:
1000mm 1200mm 1520mm 2000mm
Thickness:
0.7mm
Color:
실버 그레이
Weave:
8H 진
Temperature Resistance /Working Temperature:
750℃ 1400℃
Coated:
PU 일 측
Fiberglass:
E-유리 스테인레스 스틸 와이어 강화 유리 섬유
제품 설명

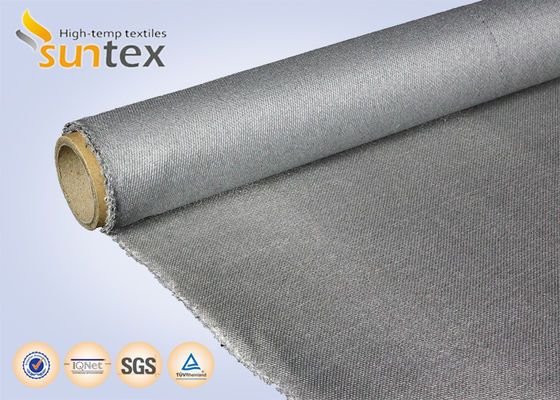

고온 내성 직물 PU 코팅 유리섬유 직물 0.7mm 유리섬유 방탄
소개합니다
GF660S-PU113-2040는 S입니다.S 와이어 강화 유리 섬유 직물, 포뮬레이션 된 폴리우레탄 알루미늄 폴리머로 열 반사 표면을 제공하며 연기 커튼 제조자에게 다른 특성을 제공합니다., 열 보호 및 다른 유형의 화재 제어 시스템.
장점
1좋은 검증된 방화성
2은색 회색 다양한 색상
3사용하기 쉽고, 꿰매고 제작하기 쉽습니다.
4좋은 경직 저항성
5튼튼한 견고성
6. 두께, 무게, 직물, 모든 응용 프로그램에 따라 사용자 정의 할 수 있습니다.

데이터
| 무게 | 690g/m2 |
| 두께 | 0.7mm |
| 너비 | 1000mm 1200mm 1520mm 2000mm |
| 코팅 | PU |
| 색상 | 은 회색 |
| 방화 저항성 | 좋아 |
| 작동 온도 | 기본 직물 550 °C, PU 코팅 180 °C |
| 직물 | 8H 사틴 |
| 가닥 워크 | EC9 33 tex 2*2 |
| 직물 | EC9 33 tex 2*2 |
| 건설 워크 | 16.5±1 끝/cm |
| 건축물 | 14.5±1 끝/cm |
| 유리섬유 | E-글라스 스테인리스 스틸 와이어 강화 유리 섬유 |
신청서
연소 장막
방화막
확장 관절
재사용 가능한 열 절연 덮개
열 절연 패드
공기관
관련 제품
| 스타일 번호 | 무게 | 두께 | 색상 | 코팅 | ||
| g/m2 | 1 oz/d2 | mm | 인치 | |||
| GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | 흰색 | 2면 |
| GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | 은 회색 | 2면 |
| GF430P·PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | 은 회색 | 2면 |
| GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | 블루/블랙 | 2면 |
| GF430P·PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | 회색 흰색 | 2면 |
| GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | 블루/블랙 | 2면 |
| GF660?? PU223-2016 | 720 | 21 | 0.71 | 0.0275 | 은 회색 | 2면 |
| TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | 은 회색 | 1면 |
| GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | 은 회색 | 2면 |
| TGF1020·PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | 녹색 | 1면 |
| GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | 은 회색 | 2면 |
| GF660S·PU113-2040 | 790 | 23 | 0.70 | 0.027 | 회색 | 1면 |
| SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | 은 회색 | 1면 |
| TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | 은 회색 | 2면 |
