Product Details
강조하다:
1.0 밀리미터 섬유 유리 직물
,섬유 유리 직물은 회전합니다
,30개 온스 섬유 유리 직물
Color:
금빛 항발화성 섬유 유리 직물
Application:
보호를 용접한 연기 커튼
Width:
183cm
Thickness:
1.0 밀리미터
Density:
1020 G / sq.mtr
Temperature:
550 급 C
Product Description

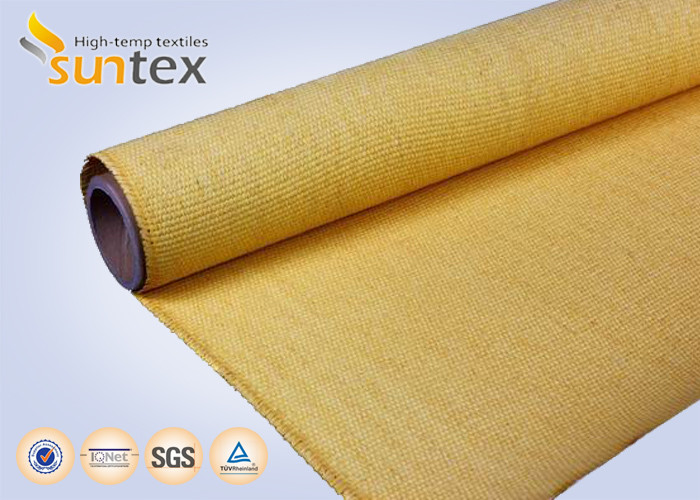

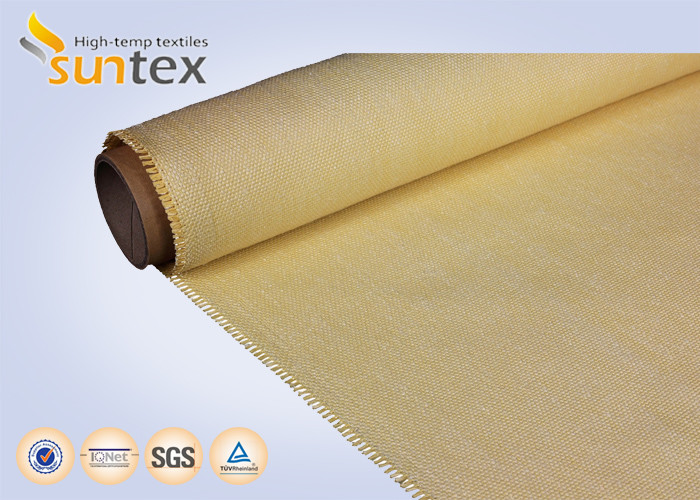

1.0 밀리미터 30 온스는 저항하는 섬유 유리 직물 난연제 연기 커튼을 해고합니다
TGF884P-AC236-3022는 아크릴 코팅과 직조된 섬유 유리 직물입니다.그것은 임시까지 우수한 고온저항을 가지고 있습니다. 불을 벗어날 때 셀프인 5500C는 2 초에 끕니다.
아크릴 코팅은 핸딩을 향상시키고, 공수되는 섬유를 감소시킵니다.유독성 매연 아웃 가싱에 대한 잠재력을 제거하는 동안 도료는 마모 저항력과 판매 수명을 강화합니다. 처리 뒤에, 마흐니컬 성능은 또한 나아졌습니다.
항발화성 섬유 유리 직물은 완전히 무석면이고 아니오 인간 또는 동물에게 해를 입힙니다.
선텍스는 요구된 금빛 컬러 또는 타 색을 제공합니다.
기술 데이터 :
| 베이스 패브릭 | 베이스 패브릭은 아니오 명명합니다. TGF884 | ||
| (측정) | (영어) | 검사 방법 | |
| 제직물 | 평지 | 평지 | |
| 방사 | |||
| 날실 | ET9 860 텍스 | ETG 5.8 | |
| 씨실 | ET9 860 텍스 | ETG 5.8 | |
| 구조 | |||
| 날실 | 6.1 ± 0.5 마지막 / 센티미터 | 15 ± 1 마지막 / 인치 | ASTM D 3775-96 |
| 씨실 | 4.1 ± 0.2는 / 센티미터를 고릅니다 | 10 ± 1은 / 인치를 고릅니다 | ASTM D 3775-96 |
| 중량 | 884± 30 g/m2 | 26 ± 0.9 oz/yd2 | ASTM D3776-96 |
| 두께 | 1.0 ± 0.04 밀리미터 | 0.039 ± 0.002 인치 | ASTM D1777-96 |
| 가공 직물 | 아니오 방식을 완성하기. AC236-3022 | |||
| 코팅 | 양쪽, 높은 추가기기 위의 아크릴 제직물 지정된 마무리. | |||
| 중량 | 1020년 ± 50 g/m2 | 30 ± 1.47 oz/yd2 | ASTM D3776-96 | |
| 두께 | 1.0 ± 0.08 밀리미터 | 0.039± 0.003 인치 | ASTM D1777-96 | |
| 색 | 골든 | |||
| 임시 저항 | 5500C | 10000F | ||
장점 :
1. 구멍을 뚫고, 바느질되고 제조되도록 쉽습니다.
2. 550개 C 도까지 고열을 지원합니다
3. 우수한 장력 강도.
메인 애플리케이션 :
1. 연기 억제제 커튼
2. 용접 보호 덮개
3. 산업적 열차단 매트리스
