Silicone Coated Fiberglass Fabric for Thermal Insulation Cover Insulation Mattress Insulation Blanket Insulation Jacket
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Material | ceramic fiber insulation, fiberglass cloth | Yarn type | E-Glass |
|---|---|---|---|
| Alkali content | Alkali Free | Weight | from 200 to 2000 gram/sq.mtr |
| Thickness | 25-100mm | Colors | red,grey,black,green,and customed colors |
| Temperature resistance | -60C-1200C | Size | be customized according to different shapes and sizes of the equipment |
| Good Features | weatherproof, durable, reusable, easily applicable | Application | pipes and flanges insulation,etc. |
| 강조하다 | thermal insulation fabric,Silicone Coated Fiberglass Fabric,Thermal Insulation Cover |
||
제품 설명
Heat Guard Fiberglass Insulation Cover For Insulation Of Flanges And Pipes
Product Description

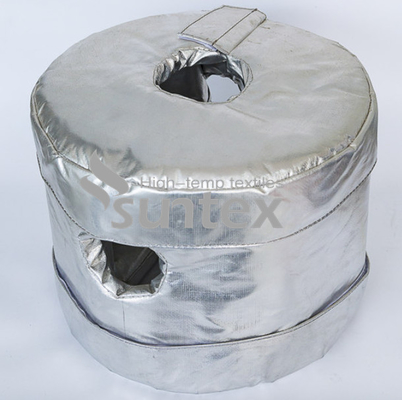

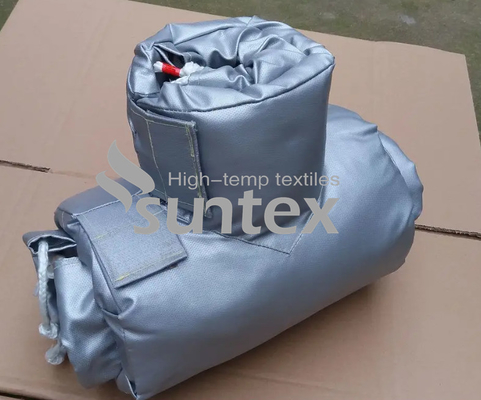

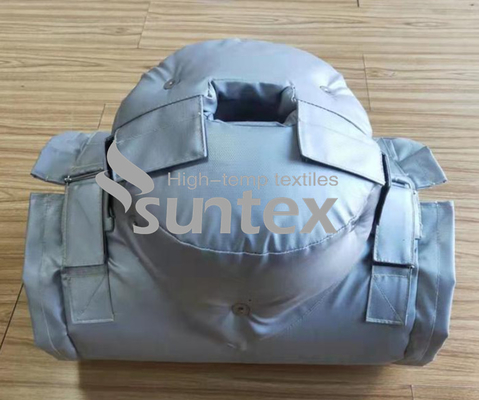

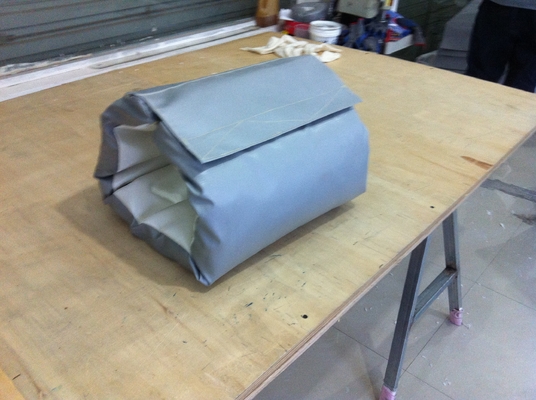

Suntex heat guard insulation cover is an economical solution for reducing heat loss and energy costs. It conserves energy, preserves process temperatures, and improve workplace safety for various applications with in process industry where heat conservation and process temperature are concerns. It is applicable for the insulation of flanges and pipes.
it is also known as removable insulation jackets made from ceramic fiber insulation and fiberglass cloth. It is asbestos free , environmentally safe, durable, reusable, and easily applicable.
Application:

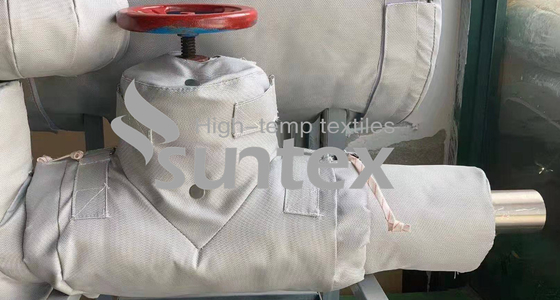

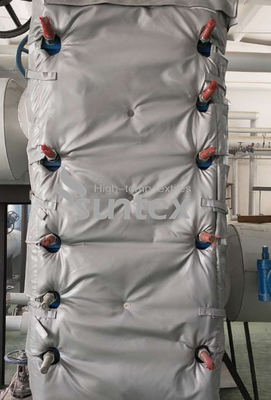

It is customized and wrapped outside flanges, pipes, pumps, filters, exchange, pipeline, valves, freeze protection, and others.
characteristics of Suntex thermal insulation covers:
--Excellent control or reduction of radiant heat loss
--Improves equipment efficiency and durability
--Reduces energy consumption
--Removable and reusable
--Reduce maintenance cost
--Closed insulation system
--Personal protection
--Reduce sound transmission
--Asbestos free and environmentally safe
--Weatherproof
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
| Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
| (gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
| GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
| GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
| GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
| GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
| GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
| GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
| GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
| GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
| GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
| TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
| TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
| TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
| TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
