Silicone Rubber Coated Fiberglass Fabric For Removable Insulation Jacket And Cover
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Material | aluminum-foil,glassfiber and high temperature resistance cloth | 얀 유형 | 전자유리 |
|---|---|---|---|
| 알칼리 함유량 | 알카리 프리 | 제직물 타입 | 능직 |
| 중량 | 200에서부터 2000 그램 / sq.mtr | 두께 | 25-100mm |
| 폭 | 1m 1.2m 1.5m 1.8m 2m 또는 주문 제작됩니다 | 색 | 빨간, 회색, 검고 녹색이고 주문된 색 |
| 온도 저항 | -70C~+1000 Ｃ | 사이즈 | 장비의 상이한 모양과 크기에 따라 맞춤화되세요 |
| 구성을 위해 | 제거할 수 있는 열 절연 패드, 재킷 | 좋은 특징 | 우수한 단열재, 물과 세척되도록 쉬운 기름 가공 |
| 애플리케이션 1 | 파이프, 팔꿈치, 플랜지, 티 위의 열 보존성과 단열 | 애플리케이션 2 | 화학 반응기, 터빈 정장, 열 교환, 배기관 |
| 강조하다 | Silicone Rubber Coated Fiberglass Fabric,Coated Thermal Insulation Fabric,Removable Insulation Jacket Fiberglass Fabric |
||
제품 설명

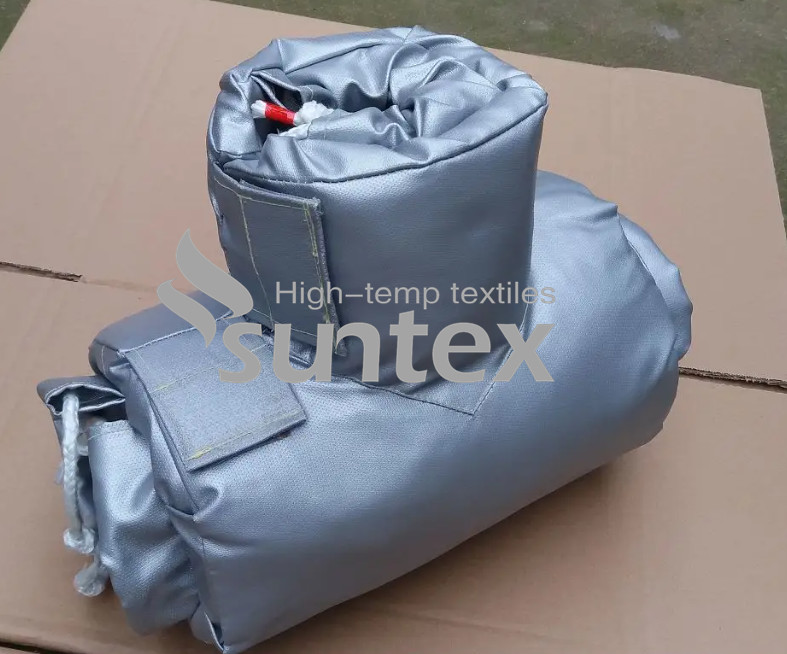

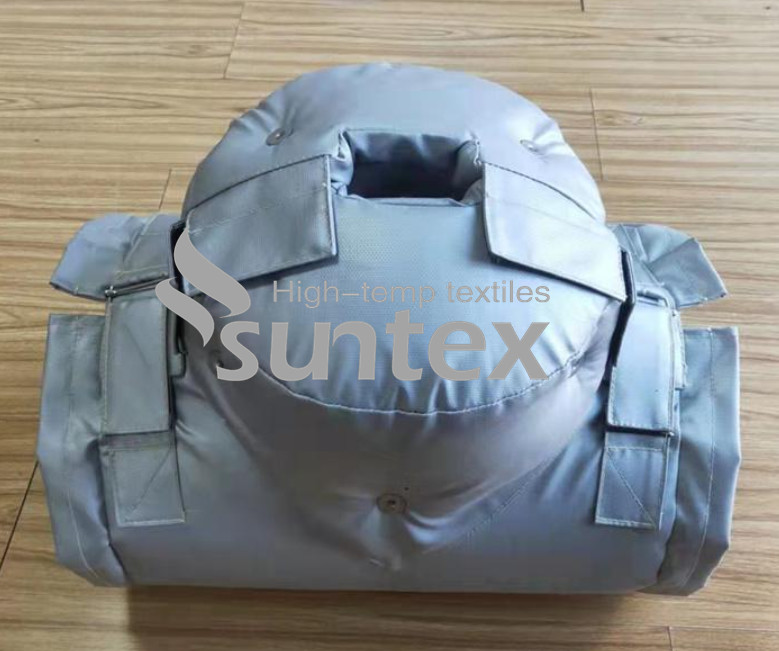

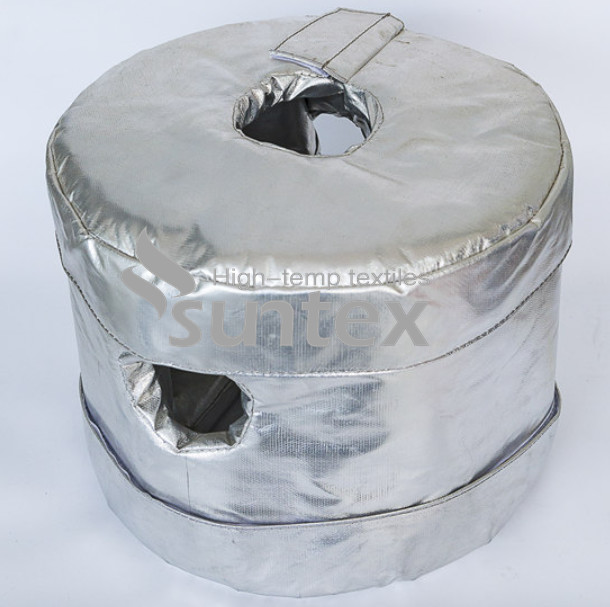

Customized Reusable Fiberglass Thermal Cover Removable Insulation Jacket
Product Description
Suntex removable insulation jackets are made of glass fiber and high-temperature resistant aluminum foil or silicone cloth. The Jacket comprises three layers-inner, insulation, and protective layers. The working temperature can be up to 1000 C.It has many advantages such as excellent insulation, water, and oil proofing,multi-lay protection,anti-corrosion, easy to clean, easy to bend,pollution-free. It Can be customized according to different shapes and sizes of the equipment, it is all up to customers’ requirements.
Application:
--removable thermal insulation cover, insulation blanket, insulation cover
--injection molding machine, extrusion machines, molds& dies
--heat preservation and insulation on pipes. elbow, flange, tees, chemical reactors
--turbine suits of thermal power and nuclear powers
--gas turbine suits, the heat exchanges and the exhaust pipe of engines
Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.
| Style No. | Base fabric | Coatings | Color | Weight | Thickness | Working temp. | |||
| (gram/m2) | (Oz/yd2) | (mm) | (inch) | (0C) | (0F) | ||||
| GF430P-SI1413 | Fiberglass | Silicone | silver grey | 510 | 15 | 0.4 | 0.016 | 260 | 500 |
| GF430P-SI2423 | Fiberglass | Silicone | silver grey | 560 | 16 | 0.45 | 0.018 | 260 | 500 |
| GF660P-SI2453 | Fiberglass | Silicone | silver grey | 960 | 28 | 0.76 | 0.030 | 260 | 500 |
| GF880P-SI2463 | Fiberglass | Silicone | silver grey | 1380 | 41 | 1.25 | 0.049 | 260 | 500 |
| GF600-WS210 | Fiberglass | Weave-locked | Green | 630 | 19 | 0.6 | 0.024 | 550 | 1000 |
| GF800-WS212 | Fiberglass | Weave-locked | Blue | 830 | 24 | 0.75 | 0.030 | 550 | 1000 |
| GF430-PTFE213E | Fiberglass | PTFE | Grey/Black | 530 | 16 | 0.45 | 0.018 | 550 | 1000 |
| GF430-AL1110 | Fiberglass | Aluminum Foil | Silver | 470 | 14 | 0.4 | 0.016 | 550 | 1000 |
| GF430-AL1300 | Fiberglass | Aluminized polymer film | Silver | 450 | 13 | 0.4 | 0.016 | 550 | 1000 |
| TGF1000-GP225 | Fiberglass | Graphite | Black | 1100 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF2050-GF235 | Fiberglass | Graphite | Black | 2270 | 67 | 3.5 | 0.138 | 700 | 1290 |
| TGF880-GP225 | Fiberglass | Graphite | Black | 980 | 29 | 1 | 0.039 | 700 | 1290 |
| TGF1000-VE226 | Fiberglass | Vermiculite | Tan | 1080 | 32 | 1.5 | 0.059 | 750 | 1380 |
| TGF1000-CS2110 | Fiberglass | Calcium Silicate | White | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2111 | Fiberglass | Calcium Silicate | Green | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
| TGF1000-CS2112 | Fiberglass | Calcium Silicate | Blue | 1080 | 32 | 1.5 | 0.059 | 700 | 1290 |
