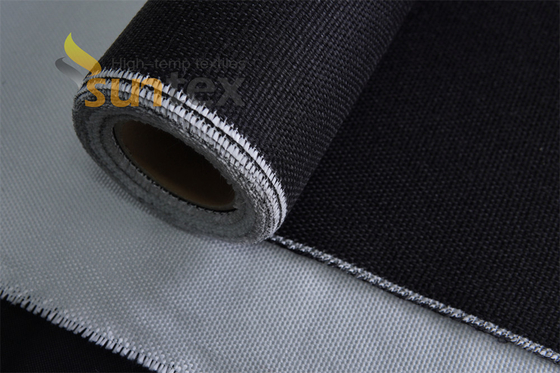

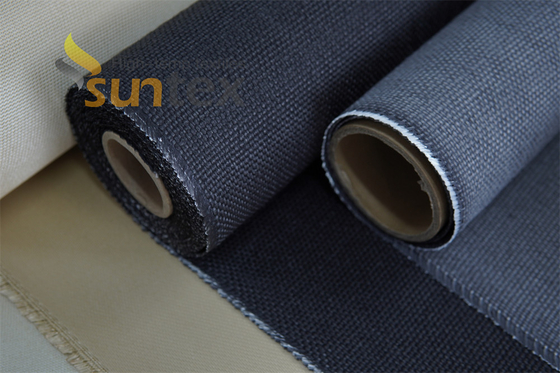

난연제 우븐 섬유 유리 파이버 메시 테이프는 파이프 와인딩, 이음새, 결함, 어선, 주조를 위해 큽니다
Place of Origin:중국
Brand Name:SUNTEX
Model Number:GF200P
Minimum Order Quantity:20롤
Payment Terms:전신환 ; L/C (신용장), 페이팔...
Supply Ability:500000sqm/month
Product Details
강조하다:
우븐 유리 섬유
,고온 유리 섬유
,유리 섬유 패브릭
Application:
열기는 트테르모코버스
Weight:
6 온스
Working Temperature:
1000F
Performance:
난연제
Color:
비백색
Raw Material:
전자유리
Product Description
7628 난연제 직물 우븐 유리 섬유 550C 전자적 열차단
섬유 유리 직물의 모든 형태의, 우븐 섬유 유리 직물은 두께, 체중과 힘 위에서 가장 넓은 범위와 최고 제어를 제공합니다. 이것은 설계 필요를 충족시키고 목표를 충족시키기 위해 재료 공학적에게 통제된 직물 물성 중에서 광범위한 선택을 제공합니다.
GF200P는 경량의 우븐 섬유 유리 직물입니다. 그것은 프리미엄 등급 직기상태 유리 섬유입니다.
미국 참조 7628 번.
그것은 넓게 전자, 전기 제품, 지지 구조, 산업적이, 민간 판, 도료를 위한 기초 섬유, 모형 항공기, 스포츠 장비, 군용 산업과 내염성, 필터, (특별 처리 뒤에) 장식, 패키징과 안에 다른 현장에서 사용됩니다.
GF200P는 차이 탄성체와 폴리머로 덧입히는데 적합합니다
기술 데이터 :
| 특성 데이터 | |||
| (측정) | (영어) | 검사 방법 | |
| 제직물 | 평지 | 평지 | |
| 방사 | |||
| 날실 | EC9 68 1*0 | ECG 75 1/0 | |
| 씨실 | EC9 68 1*0 | ECG 75 1/0 | |
| 구조 | |||
| 날실 | 17 ± 1 마지막 / 센티미터 | 43 ± 3 마지막 / 인치 | ASTM D 3775-96 |
| 씨실 | 12.4 ± 1은 / 센티미터를 고릅니다 | 32 ± 3은 / 인치를 고릅니다 | ASTM D 3775-96 |
| 중량 | 200 ± 10 g/m2 | 5.88 ± 0.29 oz/yd2 | ASTM D3776-96 |
| 두께 | 0.19 ± 0.01 밀리미터 | 0.0074 ± 0.002 인치 | ASTM D1777-96 |
| 표준 폭 | 101.6 ± 1 센티미터 | 40 ± 0.39 인치 | ASTM D3776-96 |
| 121.9 ± 1 센티미터 | 48 ± 0.39 인치 | ||
| 127 ± 1 센티미터 | 50 ± 0.39 인치 | ||
| 임시 re 시스턴스 | 5500C | 10000F | |
장점 :
- 큰 집합성, 낮은 정전기 / 퍼즈
- 내염성, 극단적으로 낮은 수차
- 쉽게 수지에 의해 물에 담그세요
- 수지에서 좋은 이동성
- 좋은 물리적 / 화학 안정성
메인 애플리케이션 :
- 단열
- 코팅을 위한 기초적 직포
- 보강물 플라스틱과 복합체
- 열 적용
- 항공기, 자동차
- 서프보드 건물, 보트를 탑니다
