Product Details
강조하다:
코팅 섬유 유리 구성
,폴리테트라플루오르에틸렌 코팅 섬유 유리 구성
,실리콘 코팅처리 섬유 유리 직물
Weave Type:
능직 우븐, 평직 또는 주문 제작됩니다
Surface Treatment:
PTFE는 코팅했습니다
Material:
섬유 유리
Coating:
두 면 PTFE는 코팅했습니다
Thickness:
0.42 밀리미터
Width:
1000~4000mm
Standing Temperature:
+330 급 C에 대한 -70
Type:
PTFE는 유리 섬유을 코팅했습니다
Good Feature:
부식 저항성, 난연제, 비바람에 견딘 논-스틱 열차단
Application:
열 억제제, 용접되면서, 발사됩니다
Color:
검은, 녹색이고 회색이고 주문된 색
Product Description

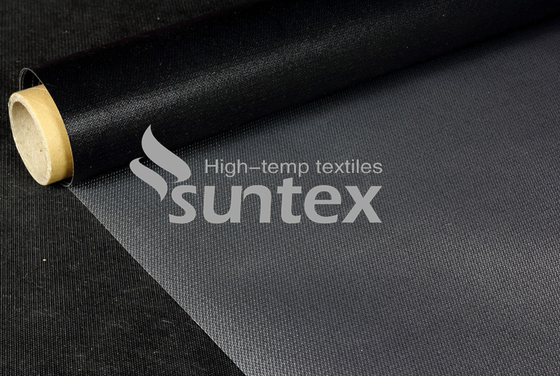

열 차폐물과 화재 / 용접을 위한 0.42 밀리미터 고온저항 Ptfe 섬유 유리 도포 직물
PTFE 유리 섬유는 PTFE로 코팅된 우븐 섬유 유리로 만들어집니다. 그들은 애플리케이션의 넓은 범위에 대해 설계됩니다. 그들은 620' F에 늘어붙지 않게 되어 있는 표면, 내성 온도를 가지고 있습니다. 그들은 화학적으로 활발치 못하고, 전단 저항성 능력을 가지고 우수한 전기특성을 가집니다. 그들의 적용은 단열과 용접 보호, 소방, 화학 공장, 정유공장, 조선소, 컨베이어 벨트, 가스킷, 밀봉, 구성 통풍관 연결기, 구성 공기 분배구와 기타를 포함합니다.
| 베이스 패브릭 | 베이스 패브릭은 아니오 명명합니다. GF430P | ||
| (측정) | (영어) | 검사 방법 | |
| 제직물 | 4H 진 | 미나리아재비 | |
| 방사 | |||
| 날실 | EC9 136 1*0 | ECG 37 1/0 | |
| 씨실 | EC9 136 1*0 | ECG 37 1/0 | |
| 구조 | |||
| 날실 | 18 ± 1 마지막 / 센티미터 | 48 ± 3 마지막 / 인치 | ASTM D 3775-96 |
| 씨실 | 12.6 ± 1은 / 센티미터를 고릅니다 | 32 ± 3은 / 인치를 고릅니다 | ASTM D 3775-96 |
| 중량 | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| 두께 | 0.37 ± 0.06 밀리미터 | 0.015 ± 0.002 인치 | ASTM D1777-96 |
| 도포 직물 | 코팅은 아니오 명명합니다. PTFE245-8018 | ||
| 코팅 | PTFE는 양쪽위에 코팅했습니다 | ||
| 중량 | 610 ± 20 g/m2 | 18± 0.6 oz/yd2 | ASTM D3776-96 |
| 두께 | 0.45± 0.02 밀리미터 | 0.017 ± 0.0007 인치 | ASTM D1777-96 |
| 색 | 검정색 | ||
| 내염성 | 난연제 | ||
| 대전 방지적입니다 | 예 (정적이 소산성) | ||
| 임시 저항 |
유리 섬유 최고 550C (1000F) 최고 330C (620F)를 코팅하는 PTFE |
||
특성 : 세척되도록 쉬운 논-스틱 면, 화학적으로 활발치 못하,고 항장력, 우수한 전기특성, 방수되, 기상에 대한 내화인 +330' C에 대한 승온.
애플리케이션 :
-- 덮개와 커튼을 용접하기
-- 방화문 / 커튼 / 덮개
-- 단열
-- 신축 이음쇠
-- 화학 공장, 정유공장, 조선소, 노
-- 다른 화재와 제연 시스템
